| country | Time | production line | yield | area |
| Jiangxi, China | 2018.7.30 | Wood pellet production line | 7.5-9 tons/hour | 16m*5m*25m（L*W*H） |

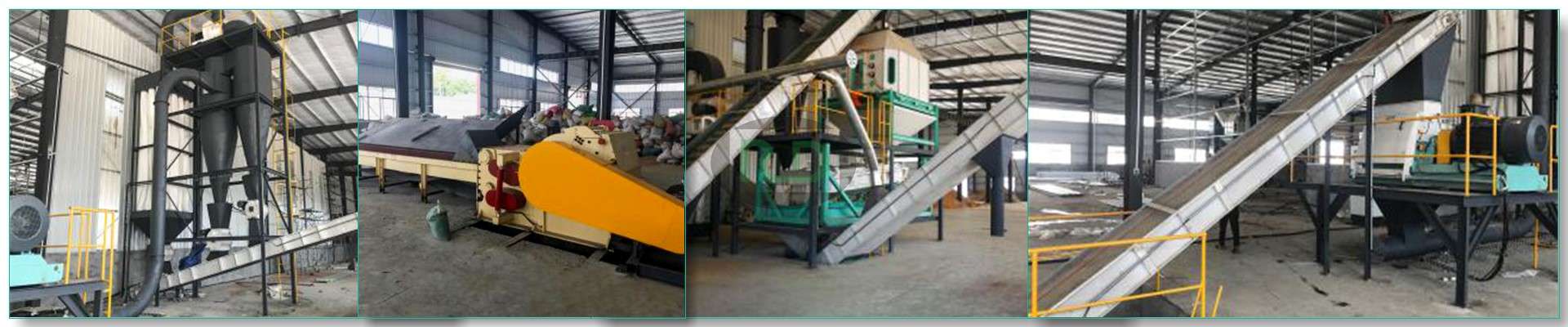

Jiangxi 7.5-9 t/h wood pellet production line solution
Capacity: 7.5-9 tons/hour
Raw material: sawdust / wood / sawdust / shavings
Applications: Industrial boilers/biomass power plants/wood processing/home fireplaces
Transformer:≥1100kVA。
How to build a biomass pellet production line?
Examine the quality, price, and quantity of raw materials, and also consider the factors of long-term supply (i.e., long-term control), so that we can plan the configuration of the production line and analyze the cost of raw materials according to the configuration of the production line. Once the raw materials have been decided, it is necessary to determine the plant. The construction of the plant or looking for a place that is generally close to the raw material or convenient transportation. It's best to have both. Energy consumption. The pelletizing industry consumes a lot of electricity. After determining the production capacity, purchase a transformer that matches the production capacity according to the equipment power selection provided by the equipment manufacturer. Purchase equipment. Before buying equipment, you must first understand the product quality of the equipment manufacturer. In the network environment, it is often difficult to distinguish between good and bad product quality. For equipment installation and commissioning, Rongda will send technical personnel to provide guidance, installation, commissioning and training.
【Case】7.5-9 tons/hour granule production line
The customer is a pellet factory in Jiangxi.
Nature of construction: new
Construction scale: annual output of 3.4-39,000 tons of granules
Number of installers required: 2 people
The production line operators: 3-4 people

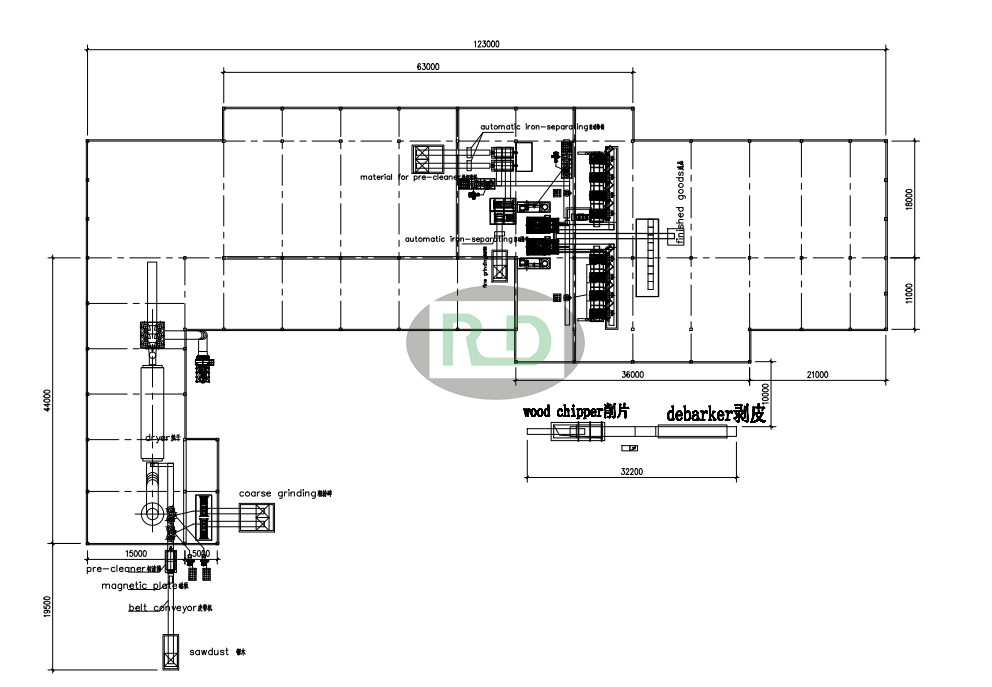

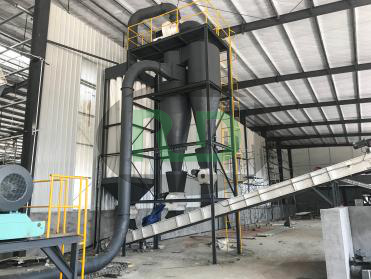

Production line design drawing:

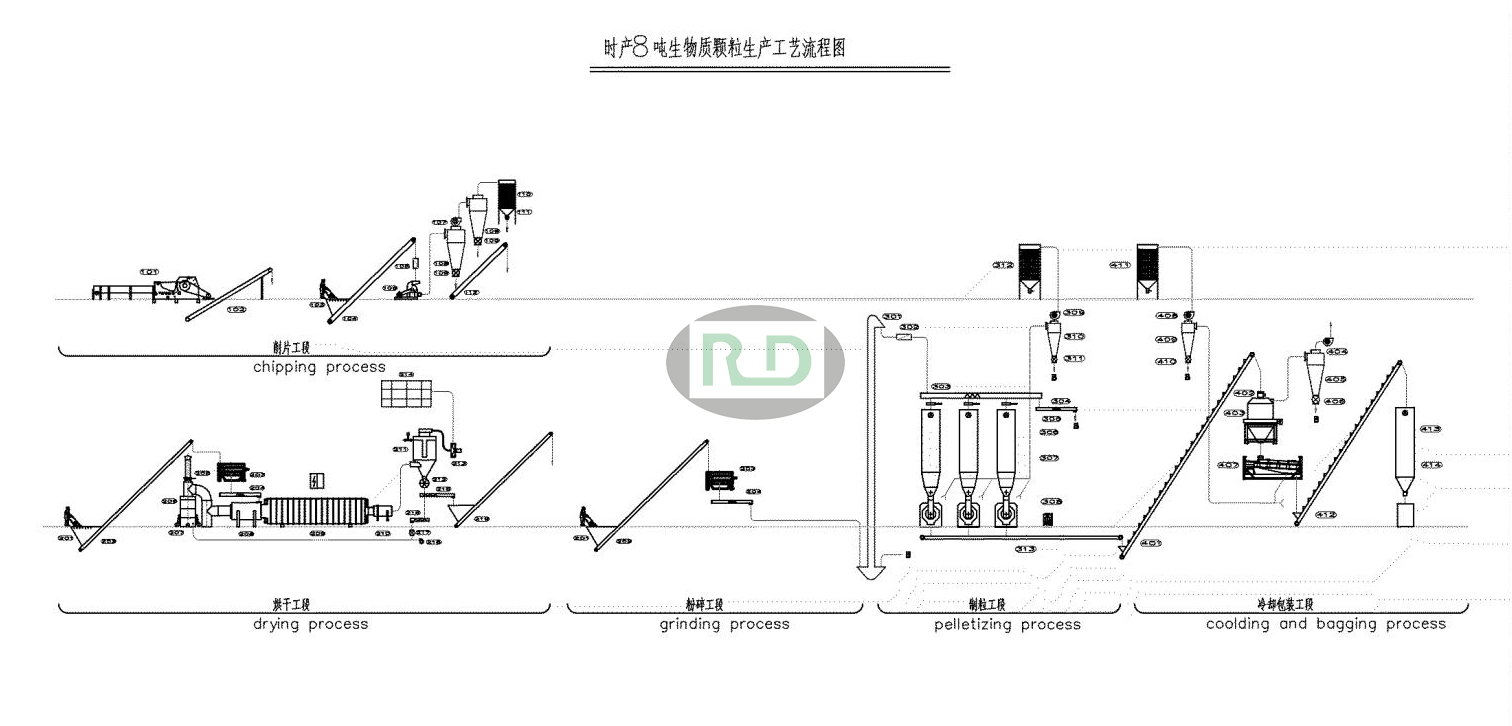

Process:
core equipment of the project:
| The name of the device | Model | yield | power consumption | |
 | RD678MX | 2.5-3 | 206 | |
 | SFSP66x100 | 6-8 | 132 | |
 | Primary cleaning screen | SCY120x1500 | 3-4 | 1.5 |
 | BX218 | 6-8 | 118 | |
 | SFJH150×1d | 15-20 | 7.50 | |
 | SKLN cooling machine | SKLN6 | 15 | 1.5 |
Other equipment | Packing machine/transport system/electric control/dust removal | |||
The core equipment of the project:

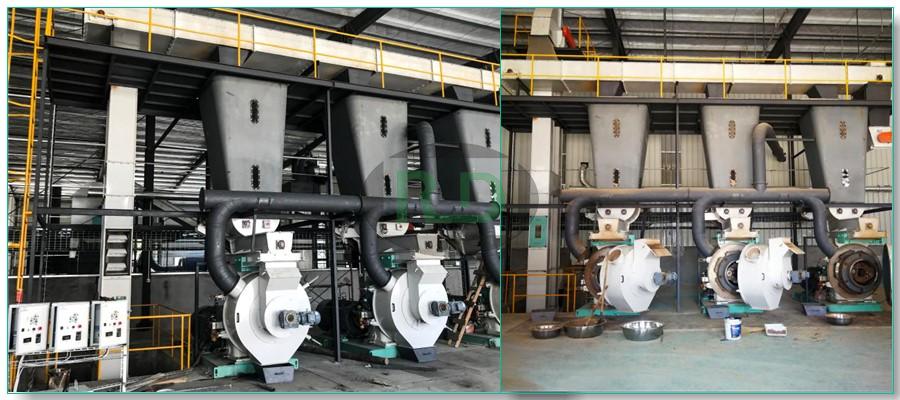

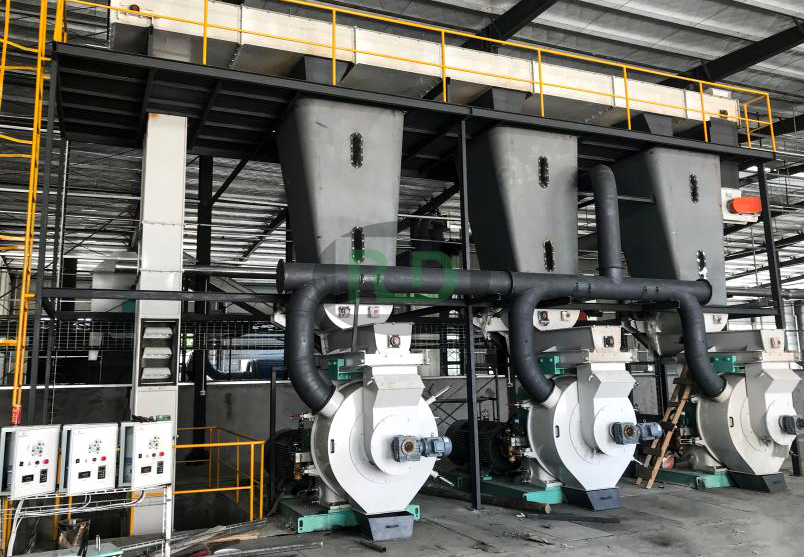

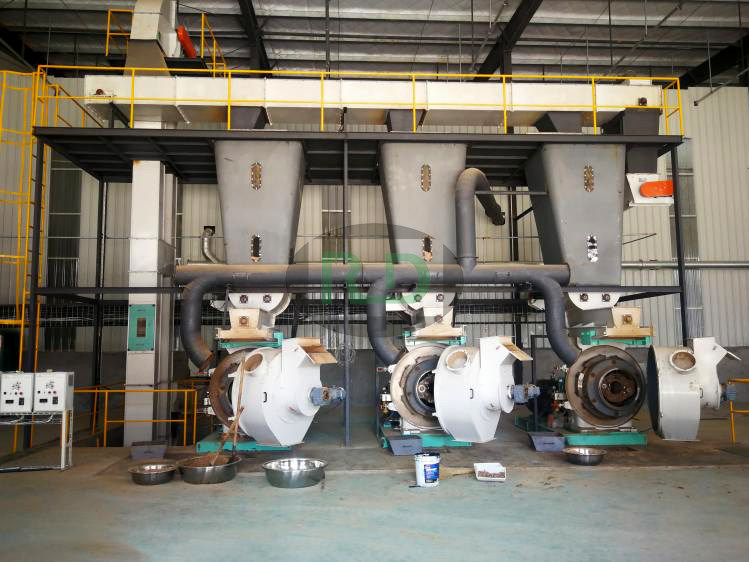

1. RD678MX granulator * 206KW;

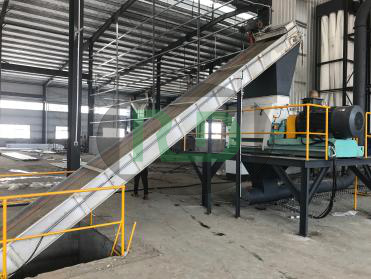

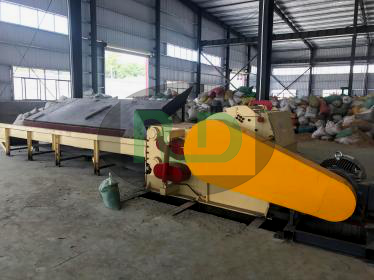

2. Chipping machine * BX218;
3. Crusher * SFSP66x100;

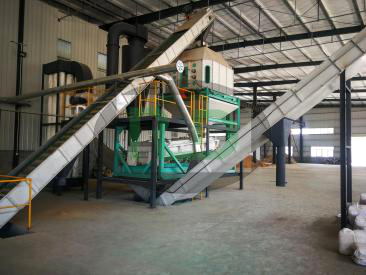

4. Cooler * Schlan6;
5. Classification screen * SFJH150 × 1d;
6. Electric control cabinet;
7. Packaging machines and other auxiliary equipment
Customer's main raw materials: various types of wood, waste wood, sawdust, sawdust, furniture waste
Customer demand for finished product size: 8-10mm
Does it include packaging system (Y/N): Yes, this is included in the complete product line
Does it include boiler system (Y/N): No boiler
Is it a customized solution? (Yes/No): This is a customized solution for our clients.
Project scope: This production line is used to produce wood chips particles
The installation period of this project : 40 days
Number of required installation personnel: 3 people
Service Support:
Drawing:
Flow chart;
installation drawings;
operating instructions;
Layout of wood pellet production line in workshop;
Equipment installation drawing;
steel bracket installation drawing;
Detailed steel structure drawings and bill of materials
Whether the customer comes to the factory to check (yes/no): pay online and place an order
Problems in the installation process: The installation team can help customers install and solve problems in the installation process.
One-stop after-sales service:
send two technical installation engineers to guide the installation. After the installation and commissioning are completed, we have carried out operation training for the customer's workers;
Train staff on how to maintain and protect, and depending on the function, we will develop complete maintenance rules for you, including how, when, and by whom.
Our company's after-sales department will call customers regularly to inquire about the maintenance situation and provide suggestions. In addition to wearing parts, our company also provides one-year free warranty and permanent free technical support.
